Load Feet for Shear Beam Load Cells

Thames Side’s range of shear beam load cells can be used in many applications, one of which is for platform scales or supporting machinery mounted on the floor or a fixed surface. For such applications, it is very common to use load feet to provide a firm fixing between the load cell and the mounting surface.

Different models of load foot are available, for use in different environments - as follows.

FT12i Load Foot

• Stainless steel shaft, M12 thread
• Rubber base
• Swivelling
• 300-2,500kg capacity

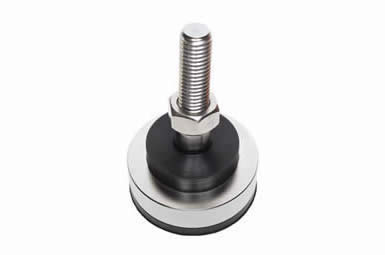

35901 Load Foot

• Stainless steel shaft, M12 thread
• Rubber base
• Covered ball joint
• Swivelling
• 300-2,000kg capacity

35917i Load Foot

• Stainless steel shaft
• Rubber base
• Swivelling
• 3,000 and 5,000kg capacity

We can supply technical drawings and 3D CAD files (e.g. in STEP format) to engineers who are specifying load cells with load feet for new equipment and we can supply installation drawings/technical manuals for site engineers responsible for system installation.

We hold an extensive stock of standard products at our Mumbai warehouse, so that products can be shipped immediately on request.

Contact Us for more information.

Further information

Contact Thames Side Sensors India to discuss your requirements for load feet in any application. We have the experience and applications knowledge to provide expert guidance on the optimum solution for you.
