Load Cells for Hazardous Areas
Equipment and products operating in hazardous areas are required to meet stringent criteria. They must be 'protected' to avoid the possibility that they could become a source of ignition. Weighing systems are often an integral part of a process within the hazardous area and therefore must have suitable protection for ATEX Load Cells .
Thames Side Sensors, as a manufacturer and supplier of weighing equipment, complies with ATEX equipment directive 2014/34/EU. We are a market leader in the design and manufacture of load cells for weighing in hazardous areas, having developed a range of load cells specifically designed for such demanding applications, for example chemical weighing.
-
All our ATEX approved load cells have certification to ATEX Ex ia IIC T6 for all gas zones 0, 1, 2 and all dust zones 20, 21, 22.
- Several models have certification to ATEX Ex ta IIIC, allowing use in all dust zones 20, 21 and 22 without safety barriers.
- Others have certification to ATEX Ex nAT6, allowing use in gas zone 2 without safety barriers.
- All our ATEX approved load cells are PESO certified by Chief Controller of Explosives (CCOE) having Approval No: A/P/HQ/MH/104/5943 (P424399).
We also offer a standard range of ATEX and IECEx approved weighing assemblies and ATEX approved weight indicators/controllers.
T12 (15-400kg)
- Stainless steel load cell
- Fully welded and hermetically sealed to IP68 & IP69K
- OIML C3 (3000 divisions) approval
- 2 body sizes suitable for 600x600mm or 800x800mm platform
- Durable polyurethane cable

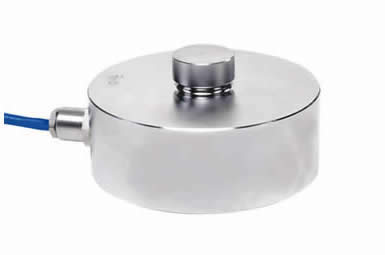

T20 (1,000-30,000kg)
- Stainless steel compression load cell
- Fully welded and hermetically sealed to IP68 & IP69K
- 1000 division accuracy
- Durable polyurethane cable
- ATEX and PESO approval available
- High temperature version available (up to 150°C)

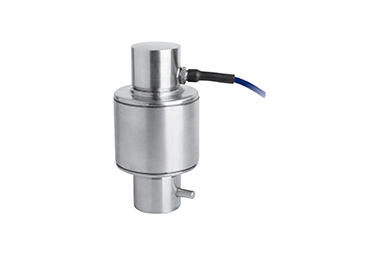

T34 Rocker Column (10,000-1,000,000kg)
- Stainless steel load cell, for weighbridges / truck scales and silo weighing
- Fully welded and hermetically sealed to IP68 & IP69K
- OIML C4, 4000 divisions approval up to 60,000kg
- Model approval from Legal Metrology Department, Government of India.
- Durable polyurethane cable
- ATEX, PESO approval available
- High temperature version available (up to 150°C)
T66 (5-500kg)
- Stainless steel load cell
- Fully welded and hermetically sealed to IP68 & IP69K
- OIML C3 (3000 divisions) or C6 (6000 divisions) approval
- Model approval from Legal Metrology Department, Government of India
- Durable polyurethane cable
- Calibrated in mV/V/Ohm
- ATEX, PESO approval available
- High temperature version available (up to 150°C)
T68 (250-7,500kg)
- Stainless steel load cell
- Fully welded and hermetically sealed
- IP68 & IP69K
- OIML C3 (3000 divisions) approval on most capacities
- ATEX, PESO approval
- High temperature version available (up to 150 °C)
- Durable polyurethane cable
T85 (300-10,000kg)
- Stainless steel load cell
- Fully welded and hermetically sealed to IP68 & IP69K
- OIML C3 (3000 divisions) approval
- Model approval by Legal Metrology Department, Government of India
- Durable polyurethane cable
- Calibrated in mV/V/Ohm
- ATEX, PESO approval available
- High temperature version available (up to 150°C)
T95 (2,000-20,000kg)
- For mixer/agitator, weigh-in-motion (WIM) and axle weighing applications
- Stainless steel load cell
- OIML C3 (3000 divisions) approval up to 10,000kg
- Fully welded and hermetically sealed to IP68 & IP69K
- ATEX, IECEx, PESO approval
- Durable polyurethane cable
VC3500 (2,000-200,000kg)
- Stainless steel sensor
- Fully welded and hermetically sealed to IP68 & IP69K
- High accuracy
- Durable polyurethane cable
- ATEX, IECEx, PESO approval available
- High temperature version available (upto 150°C)
Further information
Contact Thames Side Sensors India to discuss your requirements for load cells to be used in hazardous areas. We have significant experience and applications knowledge and we can provide expert guidance on the optimum solution for you.
