Single Point Load Cells

Thames Side’s range of Single Point (platform) load cells has amongst the highest specifications in the Indian weighing industry.

They are designed specifically for high accuracy applications in filling and dosing systems, platform scales, check-weighers, weighing and bagging machinery, etc.

Our single point (platform) load cells model T4, T5 and T6 are double bending beam single point load cells, manufactured from high quality aluminium alloy. Its design allows for high accuracy weight measurement with off-centre loads. It's potted and silicone sealed to IP66. Model T4 and T5 confirms to 3000 divisions accuracy class, while Model T6 confirms to 4000 divisions accuracy class.

Model T12 is manufactured from stainless steel, fully welded and hermetically sealed to IP68 & IP69K to provide total environmental protection and so is ideal for use in harsh environments. T12 is certified with OIML R60 Class C3. For less severe environments, model T11 and T12A nickel plated alloy steel load cells are constructed with a humidity-resistant silicone potting compound. Model T11 and T12A are certified with OIML R60 Class C3 & C4 respectively, Each single point load cells are designed and

For use in dynamic applications such as high speed checkweighing, our fluid damped T16 model has a grade 316 stainless steel housing that is protected to IP68 by a special venting kit allowing for wash-down in harsh environments that require regular cleaning. The T16 also has an integrated bi-directional stop for protection against overloads.

We can supply technical drawings and 3D CAD files (e.g. in STEP format) to engineers who are specifying load cells for new equipment.

CE logoAll of our load cells manufactured since July 2014 are RoHS 2 compliant.

Complementing our single point load cells is a broad range of precision measuring electronics to provide an optimum weighing solution in a diverse range of applications.

We hold an extensive stock of standard products at our Mumbai warehouse, so that products can be shipped immediately on request.

Contact Us for more information.

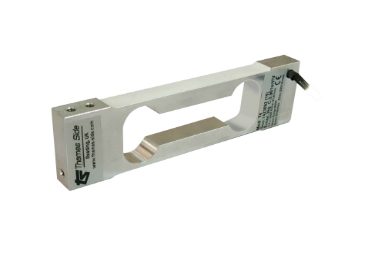

Thames-Side-T4-Single-Point-Load-Cell

T4 (0.3-3kg)

  • Double bending beam load cell
  • High quality aluminium alloy load sensor
  • High accuracy with off-centre loads
  • Wide operating temperature range
  • 3000 divisions accuracy
  • Potted and silicone sealed to IP66

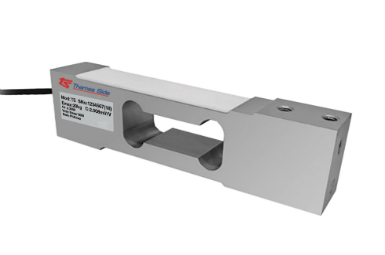

Thames-Side-T5-Single-Point-Load-Cell

T5 (3-100kg)

  • Double bending beam load cell
  • High quality aluminium alloy load sensor
  • High accuracy with off-centre loads
  • Wide operating temperature range
  • 3000 divisions accuracy
  • Potted and silicone sealed to IP66

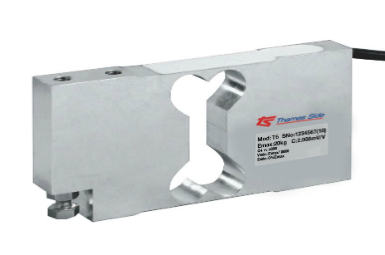

Thames-Side-T6-Single-Point-Load-Cell

T6 (5-35kg)

  • Double bending beam load cell
  • High quality aluminium alloy load sensor
  • High accuracy with off-centre loads
  • Wide operating temperature range
  • 4000 divisions accuracy
  • Potted and silicone sealed to IP66
T11-Single-Point-Load-Cell-cta

T11 (15-150kg)

  • Nickel plated alloy steel load cell
  • OIML C3 (3000 divisions) approval
  • Potted and silicone sealed to IP66
  • Suitable for platform size upto 500x500 mm
  • Durable polyurethane cable
T12-Single-Point-Load-Cell-cta

T12 (15-400kg)

  • Stainless steel load cell
  • Fully welded and hermetically sealed to IP68 & IP69K
  • OIML C3 (3000 divisions) approval
  • 2 body sizes suitable for 600x600 mm or 800x800 mm platform
  • Durable polyurethane cable
T12A-Single-Point-Load-Cell-cta

T12A (50-400kg)

  • Nickel plated alloy steel load cell
  • Silicone sealed to IP66
  • OIML C4 (4000 divisions) approval
  • 2 body sizes suitable for 600x600 mm or 800x800 mm platform
  • Durable polyurethane cable
T16-Fluid-Damped-Load-Cell-for-Dynamic-Weighing-cta

T16 Fluid Damped (5-35kg)

  • 316 stainless steel housing
  • Viscous damping specially for use in dynamic application
  • High accuracy and fast settling time with off-centre dynamic loads
  • Bi-directional overload protection
  • OIML C4 (4000 divisions) approval
  • IP68 protection using special venting kit
  • Durable polyurethane cable



Further information

Contact Thames Side Sensors India to discuss your requirements for single point load cells in any application. We have the experience and applications knowledge to provide expert guidance on the optimum solution for you.
