S-type Load Cells ( S-beam Load Cells )

Thames Side’s range of S-type load cells (also called S-beam load cells or folded shear beam load cells) has amongst the highest specifications in the market for process weighing applications.

They are designed specifically for applications in suspended tank and vessel weighing, big bag (FIBC) filling machines, concrete batching equipment and conveyor belt scales, amongst others.

Model T68 is a stainless steel load cell with weights and measures OIML approval at most capacities, for use in the harshest industrial environments due to its fully welded and hermetically sealed construction - with IP68/IP69K approval.

Models T60, T61, T64 and T65 are constructed from nickel plated alloy steel, with 4-wire and 6-wire versions available.  These offer an extremely cost effective solution where stainless steel or hermetic sealing is not required.

Our S-type load cells are designed primarily for use in tension, but they can (with the appropriate adapters) also be used in compression.  They are not suitable for dynamic (through zero) loading.

For applications where vibration or mixing/agitation may otherwise have an influence on the load cell output, the T95 load cell (together with its dedicated pendulum style mounting accessory) will allow significant movement of a vessel or tank with mixing/agitation while maintaining high accuracy weight measurement.

We can supply technical drawings and 3D CAD files (e.g. in STEP format) to engineers who are specifying load cells for new equipment.

S type Load Cells Manufacturer / S beam Load Cells Manufacturer

Complementing our S-type load cells is a broad range of precision measuring electronics to provide an optimum weighing solution in a diverse range of applications.

We hold an extensive stock of standard products at our Mumbai warehouse, so that products can be shipped immediately on request.

Contact Us for more information and a fast quotation.

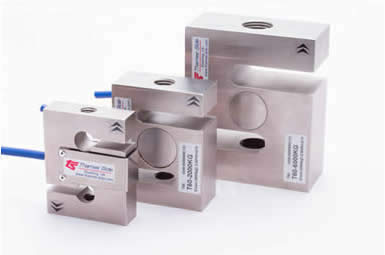

T60-S-type-Load-Cell-Family-cta

T60 (50-6,000kg)

  • Nickel plated alloy steel
  • Fully potted and sealed to IP67
  • Suitable for use in tension, compression or bi-directional manner
  • Wide capacity range - an excellent model to standardise on
  • Corrosion resistant
  • Durable polyurethane cable

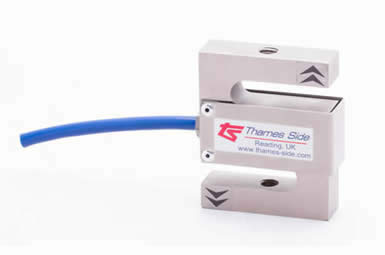

T61-S-type-Load-Cell-cta

T61 (50-1,000kg)

  • Nickel plated alloy steel
  • Fully potted and sealed to IP67
  • 3 mV/V sensitivity
  • Suitable for use in tension, compression or bi-directional manner
  • Corrosion resistant
  • Durable polyurethane cable

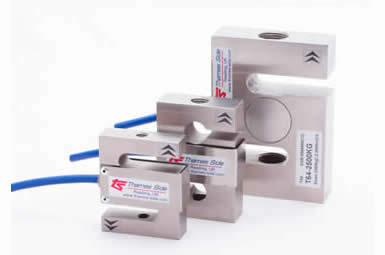

T64-S-type-Load-Cell-Family-cta

T64 (50-2,500kg)

  • Nickel plated alloy steel
  • Fully potted and sealed to IP67
  • Suitable for use in tension, compression or bi-directional manner
  • Corrosion resistant
  • Durable polyurethane cable

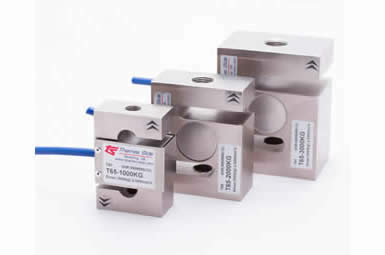

T65-S-type-Load-Cell-Family-cta

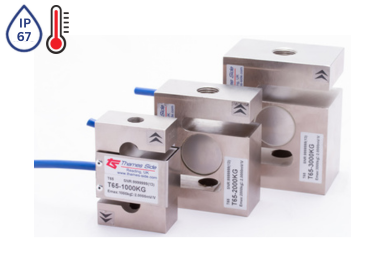

T65 (50-3,000kg)

  • Nickel plated alloy steel
  • Fully potted and sealed to IP67
  • Suitable for use in tension, compression or bi-directional manner
  • Corrosion resistant
  • Durable polyurethane cable

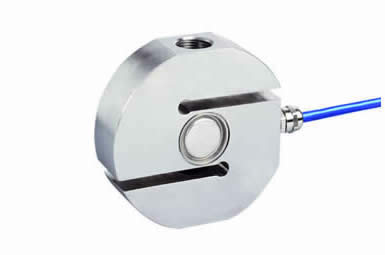

650-S-type-Load-Cell-cta

T68 (250-7,500kg)

  • Stainless steel load cell
  • Fully welded and hermetically sealed
  • IP68/IP69K
  • OIML C3 approval on most capacities
  • ATEX approval
  • Durable polyurethane cable

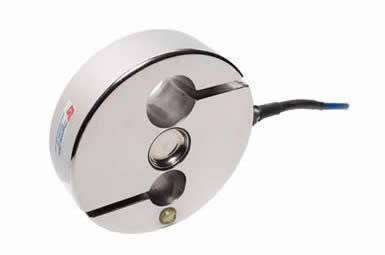

T95-Load-Cell-cta

T95 (2,000-20,000kg)

  • For mixer/agitator, weigh-in-motion (WIM) and axle weighing applications
  • Stainless steel load cell
  • OIML C3 approval up to 10,000kg
  • Fully welded and hermetically sealed
  • IP68/IP69K
  • ATEX and IECEx approval
  • Durable polyurethane cable



Further information

Contact Thames Side Sensors India to discuss your requirements for S-type load cells in any application. We have the experience and applications knowledge to provide expert guidance on the optimum solution for you.
