Weighing Assemblies for Hazardous Areas

Equipment and products operating in hazardous areas are required to meet stringent criteria. They must be 'protected' to avoid the possibility that they could become a source of ignition. Weighing systems are often an integral part of a process within the hazardous area and therefore must have suitable protection.

Thames Side Sensors, as a manufacturer and supplier of weighing equipment, complies with ATEX equipment directive 2014/34/EU. We are a market leader in the design and manufacture of load cells for weighing in hazardous areas, having developed a range of load cells specifically designed for such demanding applications, for example chemical weighing.

• All our ATEX approved load cells have certification to ATEX Ex ia IIC T6 for all gas zones 0, 1, 2 and all dust zones 20, 21, 22.
• Several models have certification to ATEX Ex ta IIIC, allowing use in all dust zones 20, 21 and 22 without safety barriers.
• Others have certification to ATEX Ex nAT6, allowing use in gas zone 2 without safety barriers.
• All our ATEX approved load cells are PESO certified by Chief Controller of Explosives (CCOE) having Approval No: A/P/HQ/MH/104/5943 (P424399).

Models T95, MasterMount and VC3500 have dual ATEX and IECEx certification to Ex ia IIC T6 Ga, Ex ia IIIC T70°C Da, allowing them to be used by OEMs and system integrators to supply systems with load cells having dual certification.

We also offer a standard range of ATEX approved weight indicators/controllers.

LA66 Conventional Mounting Assembly (5-500kg)

• Designed for platform scales, bag fillers and tank weighing systems
• Option for MS or SS mounting assembly
• Available in 5kg to 500kg capacity
• Stainless steel load cell with OIML C3 (3000 divisions) or C6 (6000 divisions) approval
• Option for high temperature or ATEX load cell
• IP68 & IP69K approved load cell

LA66 Anti-Vibration Assembly (5-300kg)

• Ideal for applications with mixing, agitation and vibration
• Option for MS or SS mounting assembly
• Available in 5kg to 300kg capacity
• Stainless steel load cell with OIML C3 (3000 divisions) or C6 (6000 divisions) approval
• Option for high temperature or ATEX load cell
• IP68 & IP69K approved load cell

LeverMount^® Lite (10-200kg)

• Unique, patented and cost-effective stainless steel 316 assembly
• Available in 5kg to 200kg capacity
• For hopper, tank weighing systems and platform scales
• Suitable for wash-down area application
• No separate jacking or lifting equipment required
• Available with OIML C3 (3000 divisions) or C6 (6000 divisions) approval
• IP68 & IP69K approved load cell
• Option for high temperature or ATEX load cell

LA66 Tension (10-300kg)

• Suitable for force measurement and low capacity tension measurement applications
• Mounting blocks and rod end bearings manufactured from corrosion resistant zinc plated steel
• Available in 10kg to 300kg capacity
• Stainless steel load cell with OIML C3 (3000 divisions) or C6 (6000 divisions) approval
• Option for high temperature or ATEX load cell
• IP68 & IP69K approved load cell

LA85 Conventional Mounting Assembly (300-5,000kg)

• Designed for platform scales, big bag fillers, belt / conveyor scales , tank weighing systems
• Option for MS or SS mounting assembly
• Available in 300 kg to 5000kg capacity
• Stainless steel load cell with OIML C3 (3000 divisions) approval
• Option for high temperature or ATEX load cells
• IP68 & IP69K approved load cell

LA85 Anti-Vibration Assembly (300-5,000kg)

• Ideal for applications with mixing, agitaton and vibration
• Option for MS or SS mounting assembly
• Available in 300 kg to 5000kg capacity
• Stainless steel load cell with OIML C3 (3000 divisions) approval
• Option for high temperature or ATEX load cells
• IP68 & IP69K approved load cell

LeverMount^® (300-5,000kg)

• Unique, patented and cost-effective stainless steel 316 assembly
• Available in 300kg to 5000kg capacity
• For hopper, tank weighing systems and platform scales
• Suitable for wash-down area application
• No separate jacking or lifting equipment required
• Available with OIML C3 (3000 divisions)
• IP68 & IP69K approved load cell
• Option for high temperature or ATEX load cell

T95 'Pendulum' Assembly (2,000-20,000kg)

• For mixer/agitator, weigh-in-motion (WIM) and axle weighing applications
• Stainless steel load cell with painted or stainless steel 'pendulum' mounting accessory
• 2,000kg to 20,000kg capacity range
• OIML C3 (3000 divisions) up to 10,000kg
• IP68 & IP69K approved load cell
• Option for ATEX, IECEx and high temperature load cell

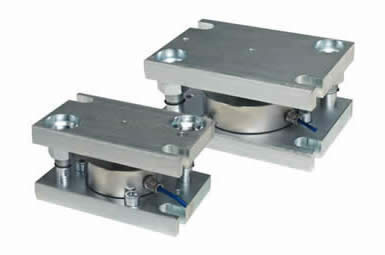

LA20 Compression Assembly (2,500-30,000kg)

• For silo/tank/vessel weighing or gravimetric level measurement
• Stainless steel load cell; zinc plated or stainless steel mounting accessory
• Cost effective solution
• 1,000kg to 30,000kg capacity range
• IP68 & IP69K approved load cell
• Option for high temperature or ATEX load cell

MasterMount^® (2,000-30,000kg)

• Unique, patented and cost-effective mounting assembly for silo/tank/vessel weighing applications
• Stainless steel load cell; painted alloy steel mounting accessory
• 2,000kg to 30,000kg capacity range
• No separate jacking or lifting equipment required
• IP68 & IP69K approved load cell
• Option for ATEX, IECEx and high temperature load cell

VC3500 (2,000-200,000kg)

• Benchmark solution in silo/tank/vessel weighing
• 30,000kg to 200,000kg capacity range
• Design allows for significant vessel expansion/contraction
• High resistance to earthquake and strong winds
• Low profile design with substantial lift-off protection
• Stainless steel load cell with IP68 & IP69K protection
• Option for ATEX, IECEx and high temperature load cell

LA34 Silo Assembly (10,000-1,000,000kg)

• Zinc plated Mild Steel or Stainless steel mounting assembly
• Capacity range from 10,000kg to 1,000,000kg
• Stainless steel compression rocker column load cell
• Integral lift off prevention thru check rods
• Design allows for vessel expansion / contraction
• Retention arm to absorb horizontal movements
• Load cell available with OIML, IP68 & IP69K approval
• Option for ATEX and high temperature load cell

Further information

Contact Thames Side Sensors India to discuss your requirements for weighing assemblies for use in hazardous areas. We have significant experience and applications knowledge and we can provide expert guidance on the optimum solution for you.
