T35 Column Cell

The T35 is an analogue compression column stainless steel load cell with a self-centering rocker column design for use in legal-for-trade applications.

It is especially suitable for use in truck scales / weighbridges thanks to its OIML C4 (4000 divisions) approval, robust design, proven anti-rotation mechanism and rodent resistant (anti-rat) polyurethane cable.

With a fully welded and hermetically sealed construction, protected to IP68 & IP69K, and integral lighting protection as standard, it is very simple to install.

To simplify the commissioning of a truck scale or weighbridge, the T35 load cell has optimized pre-corner adjustment, calibrated in mV/V/Ohm by output current matching.  This significantly reduces the time required to calibrate a truck scale or weighbridge.

Make an enquiry about this dependable, robust load cell for truck scale / weighbridge applications.

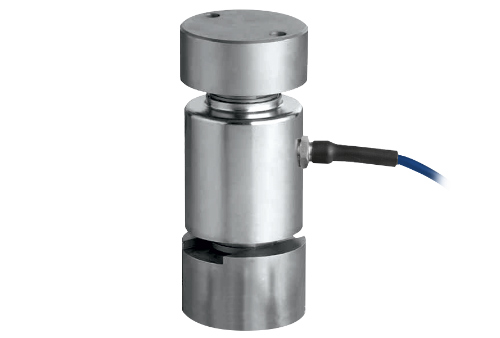

The associated LA35 mounting accessory provides 2 off zinc plated mounting cups (the lower one having 2 off anti-rotation faces).

Key features:

• Capacities 30,000kg and 40,000kg
• Stainless steel construction
• Calibrated in mV/V/Ohm
• Legal-for-trade approval to OIML R60 C4 (4000 divisions)
• Fully welded and hermetically sealed stainless steel load cell, protected to IP68 & IP69K
• Simple installation with self-centering design
• In-built surge arrestors (GDTs) for lightning protection as standard
• Special polyurethane cable which has high toughness and resistance to cuts, chemicals, UV radiation and rodent (rat) bites, etc.
• Digital version, T35D, also available

Options:

• Parylene coating for the load cell when used in extremely harsh / corrosive environments
• High temperature version upto 150 °C (continuous temperature) available

Typical applications:

• Truck scales, weighbridges, wagon tippler and vehicle weighing
