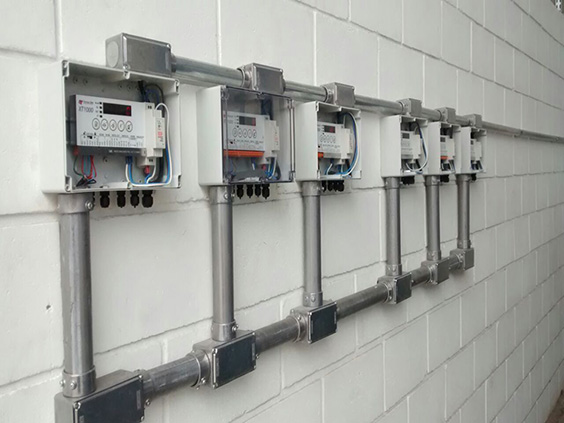

The XT1000 is a high speed digital weight indicator and transmitter with an Omega/DIN rail mount configuration. With a speed of 2400 measurements/second and several connectivity options, it is the ideal solution for a very wide range of weighing applications both static and dynamic.
Connectivity options: digital I/O, RS232/485, MODBUS (RTU or ASCII), Analogue outputs (e.g. 4-20mA), Profibus® DP, PROFINET I/O and EtherNet/IPTM.
Designed for process weighing systems, as well as any machinery with a weighing function, it incorporates the latest digital electronics. The instrument status is easily viewed using the 6-digit bright red LED display (10mm height) and status LEDs for tare, prefixed tare, zero and steady weight.
The XT1000 has OIML R76 and EN 45501:2015 approvals as well as Model approval from Legal Metrology Department, Government of India.
3 digital opto-isolated inputs and 3 digital outputs to relay, all with status LEDs, allow for easy setup to external control devices.
Ask us a question about this advanced weight indicator / transmitter.
Calibration can be achieved by using live weights, or with the load cell capacity and sensitivity data in mV/V allowing for fast start-up without live weights.
For a panel mount version with the same specification, see the XT2000 indicator and transmitter.
