T45

A reliable, simple, low cost load cell/mounting accessory combination for silo, tank, hopper or vessel weighing.  It is an excellent solution for many high capacity applications.

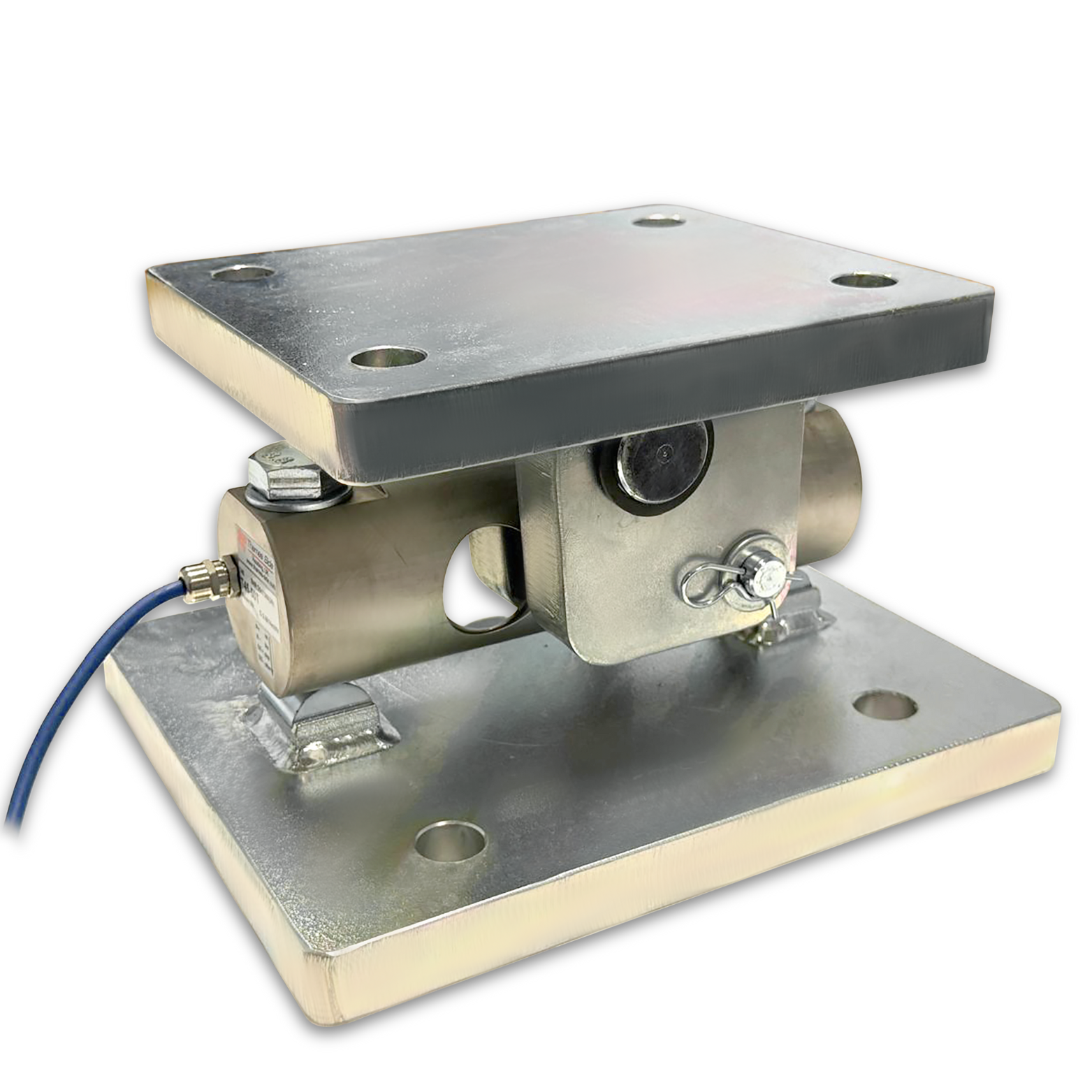

The nickel plated alloy steel T45 load cell is mounted within the low profile zinc plated alloy steel LA45 mounting accessory, which has integrated protection against side loads, end loads and lift-off loads.

Also included is an allowance for angular misalignment, which is often present in welded metal structures such as silos, tanks or their support frames. The wide operating temperature range and protection to IP67 make the T45 load cell ideal for use in many regions and climates. Expansion and contraction of the silo / vessel is accommodated by the LA45 mounting accessory.

The durable, tough, shielded 10m or 20m Polyurethane cable has high resistance to cuts, impacts, chemical attack, UV radiation and rodent attacks.

Clients looking for silo, tank and vessel weighing solutions with an excellent quality/price ratio consider the T45 an excellent solution to their needs.

Ask a question about this excellent silo / tank / vessel weighing solution.

Key features:

• Capacity 50,000kg (50 tonnes)
• Very cost-effective, low profile design with high resistance to lift-off, longitudinal and transverse loads
• Wide operating temperature range
• Nickel plated alloy steel load cell and zinc plated mounting accessory
• IP67 protection
• High quality Polyurethane cable with excellent resistance to cuts, impacts, chemical attack and UV radiation

Typical applications:

• Large silo, hopper, tank or vessel weighing

Ask a question about this cost-effective, reliable weighing solution.
